Name: Sicuro
Availability: InStock

Descrizione
Serie

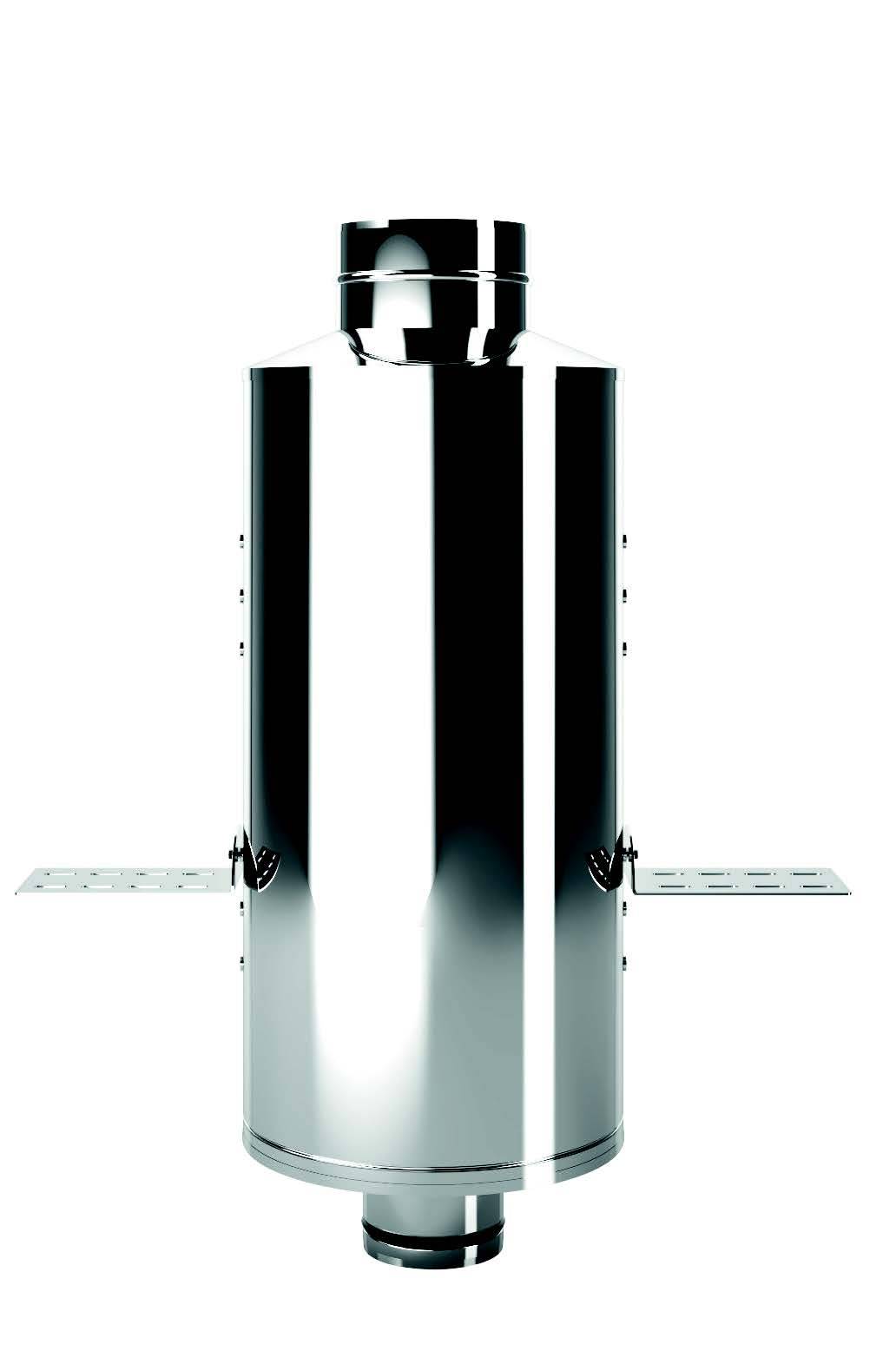

The first, the most imitated, its name already best expresses its performance in passing through floors, slabs and roofs in wood or flammable material: SICURO Available with stainless steel, copper or painted finish, SICURO is compatible with the entire De Marinis range, in compliance with the prevailing regulations and without neglecting the aesthetics of the installation environment. In fact, thanks to the special universal junction, the DESIGN system can also be connected directly, eliminating unsightly double-wall junctions.

UATS

Roof protection

RUATS

Roof protection

KUATS

Roof protection

Data sheet

NORMATIVE REFERENCES
Product marking “CE” according to the European standard EN 1856-1:2009.
MATERIALS
Internal wall: austenitic stainless steel AISI 316L BA (EN 1.4404).
External wall: austenitic stainless steel AISI 304 BA (EN 1.4301) Copper.
UTILIZATIONS
Flue systems (ducts, flue pipes, metal chimneys, air conduction) produced by heat generators like atmospheric, pressurized, air blown, traditional or condensing, domestic or industrial kitchen hoods, wood stoves, fireplaces or pellet stoves: used to pass through materials that could burn (eg roofs or slabs made of wood).
APPLICATIONS
External or internal installation.

DIAMETERS AVAILABLE (mm)
Nominal diameter of connection: 80 - 100 - 130 - 150 - 180 - 200 - 250 - 300.
GUARANTEE
10 years.
RESCTRICTIONS
Do not use for application fields different from those therein expressed: contact our offices for further technical information covering different types of generators or applications in the presence of halogen vapor (eg. laundry - ironing - chemicals laboratories).
SUGGESTIONS
We suggest you to strictly follow the indications included in the “use and maintenance handbook” or in this catalogue.

	Cod.	€	Øi	Øe	Øa	Øs	H	S	A	B	I
#515151;Acciaio Inox	UATS080	1360,64	80	130	80	280	940	700	150	50	100
#515151;Acciaio Inox	UATS100	1393,03	100	150	100	300	940	700	150	50	100
#515151;Acciaio Inox	UATS130	1562,17	130	180	130	350	940	700	150	50	100
#515151;Acciaio Inox	UATS150	1581,62	150	200	150	350	940	700	150	50	100
#515151;Acciaio Inox	UATS180	1745,98	180	230	180	400	940	700	150	50	100
#515151;Acciaio Inox	UATS200	1774,67	200	250	200	400	940	700	150	50	100
#515151;Acciaio Inox	UATS250	2163,85	250	300	250	450	940	700	150	50	100
#515151;Acciaio Inox	UATS300	2569,01	300	350	300	500	940	700	150	50	100

	Cod.	€	Øi	Øe	Øa	Øs	H	S	A	B	I
#BE7226;Rame naturale	RUATS080	1621,08	80	130	80	280	940	700	150	50	100
#BE7226;Rame naturale	RUATS100	1658,05	100	150	100	300	940	700	150	50	100
#BE7226;Rame naturale	RUATS130	1886,71	130	180	130	350	940	700	150	50	100
#BE7226;Rame naturale	RUATS150	1907,11	150	200	150	350	940	700	150	50	100
#BE7226;Rame naturale	RUATS180	2132,55	180	230	180	400	940	700	150	50	100
#BE7226;Rame naturale	RUATS200	2177,86	200	250	200	400	940	700	150	50	100
#BE7226;Rame naturale	RUATS250	2641,92	250	300	250	450	940	700	150	50	100
#BE7226;Rame naturale	RUATS300	3093,94	300	350	300	500	940	700	150	50	100

	Cod.	€	Øi	Øe	Øa	Øs	H	S	A	B	I
#975c54;Rusty	KUATS080	1330,9	80	130	80	280	940	700	150	50	100
#975c54;Rusty	KUATS100	1358,31	100	150	100	300	940	700	150	50	100
#975c54;Rusty	KUATS130	1528,51	130	180	130	350	940	700	150	50	100
#975c54;Rusty	KUATS150	1548,32	150	200	150	350	940	700	150	50	100
#975c54;Rusty	KUATS180	1704,7	180	230	180	400	940	700	150	50	100
#975c54;Rusty	KUATS200	1733,66	200	250	200	400	940	700	150	50	100
#975c54;Rusty	KUATS250	2121,21	250	300	250	450	940	700	150	50	100
#975c54;Rusty	KUATS300	2525,32	300	350	300	500	940	700	150	50	100
