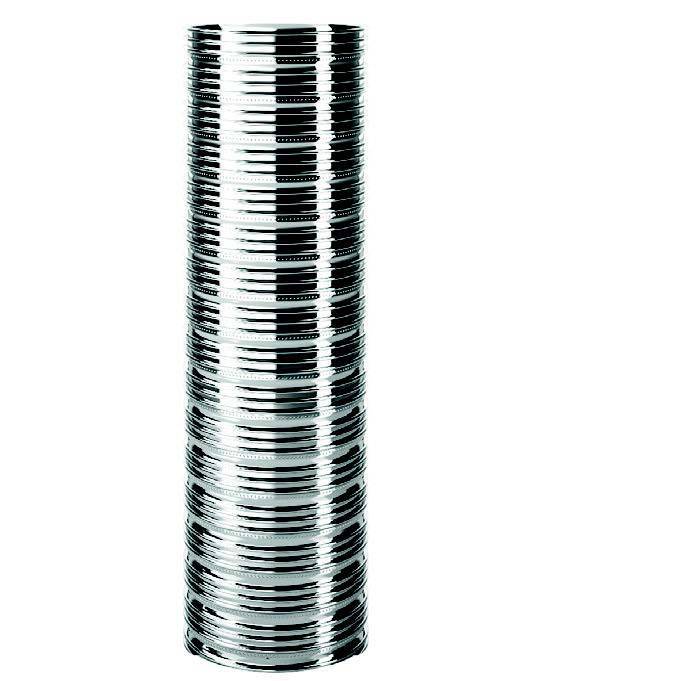

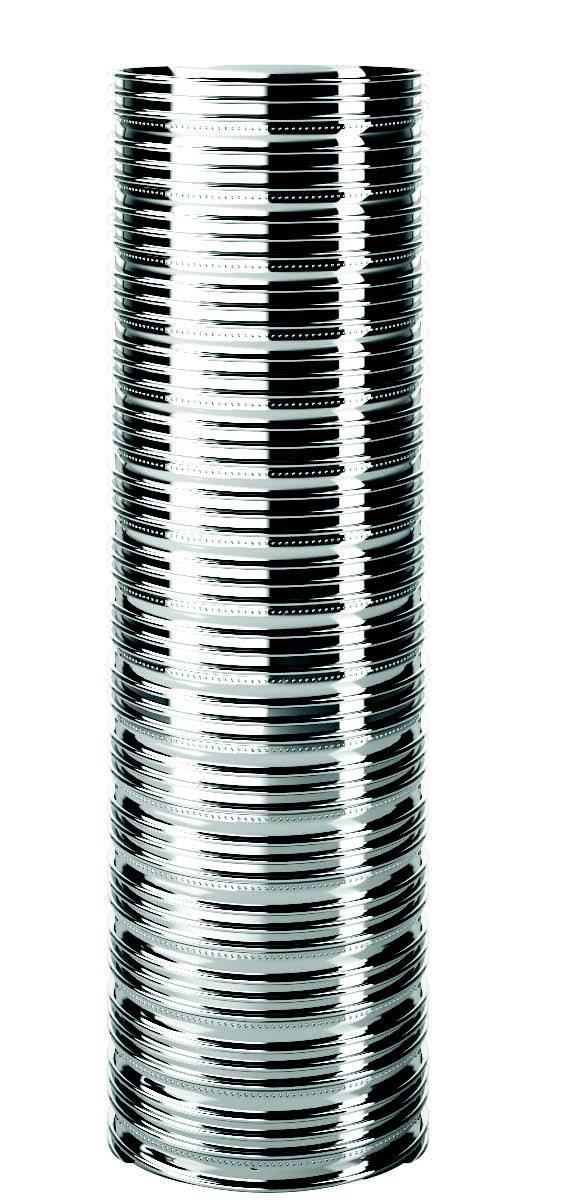

Flexible piece in AISI 316L stainless steel, double wall and smooth interior: FLEX INOX. Generally used to renovate shafts or technical compartments in combination with high-temperature generators and pressure lower than 40 Pa, FLEX INOX can also be used with condensate present, including the specific connection joint in the installation or using silicon sealing compound suitable for the purpose. Practical, versatile and convenient, thanks in part to the extraordinary curvature radius, the best in the category, in accordance with the requirements of the standard on correct and aware installation.

Data sheet

  • NORMATIVE REFERENCES
    Product marking “CE” according to the European standard EN 1856-2:2009.
  • MATERIALS
    Austenitic stainless steel AISI 316L BA (EN 1.4404).
  • UTILIZATIONS
    Metal flue systems (flue pipes, metal chimneys, air conduction) produced by heat generators like atmospheric, pressurized, air blown, traditional, domestic or industrial kitchen hoods, wood sto- ves, fireplaces or pellet stoves.
  • APPLICATIONS
    Internal installation.



  • DIAMETERS AVAILABLE (mm)
    50 - 60 - 80 - 100 -110 -120 - 130 - 140 - 150160 - 180 - 200 - 220 - 250 - 300 - 350
  • GUARANTEE
    2 years.
  • RESCTRICTIONS
    Do not use for application fields different from those therein ex- pressed: contact our offices for further technical information co- vering different types of generators or applications in the presence of halogen vapor (eg. laundry - ironing - chemicals laboratories).
  • SUGGESTIONS
    We suggest you to strictly follow the indications included in the “use and maintenance handbook” or in this catalogue.

Designations

T600-N1-W-V2-L50010-G
High temperature Flue System


T200-P1-W-V2-L50010-O

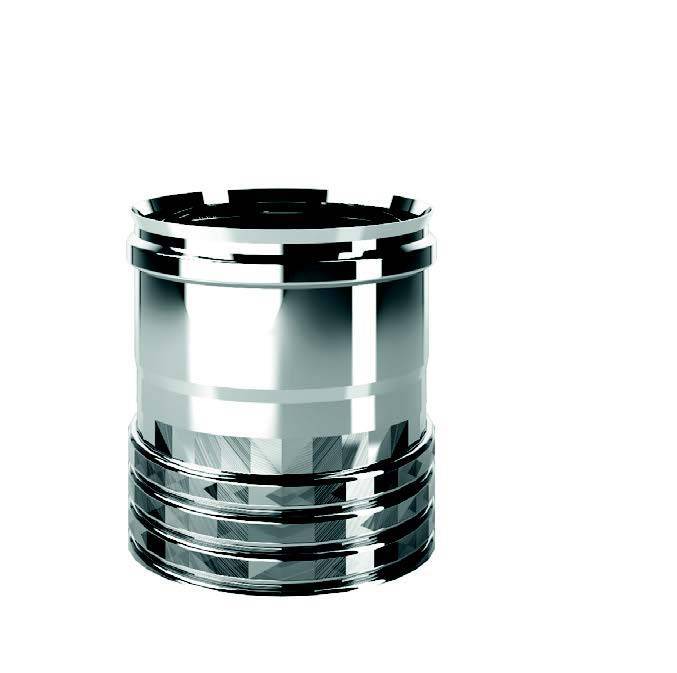

Re-piped Flue System combined by joint with gasket
or addition of silicone mastic
